DD-S8
2 in 1 color temperature LED zooming spotlight (Fresnel zoom)
Voltage:AC100-240V/50-60Hz
Light source:24pcs 5050 LEDs (3200k+5600k) , 3200k single LED 10W, 5600k single LED 10W .<
Lamp power:3200k/200W, 5600k/200W
CCT:3200-5600K tunable

DD-S8 2 in 1 color temperature LED zooming spotlight (Fresnel zoom) product description

1. The optical, structure and software of this product are designed by top international engineers.
2. The light source adopts imported LED light source, which has long life and high luminous efficiency.
3, the light source heat dissipation is made of pure aluminum specially processed heat sink, the thermal conductivity is 2.5 times that of ordinary aluminum, using ultra-quiet fan.
4. The lamp body is made of aluminum alloy material, which makes the installation operation light and convenient.

Deliberate
1, this product for different places, color temperature, display index, brightness, focus mode, control mode, lamp body color, etc., can be generated according to customer needs.
2. The input voltage of the product can be multi-staged with each other, and the number of strings can be up to 8 per group.




Product name:2 in 1 color temperature LED zooming spotlight (Fresnel zoom)

Item:DD-S8

Voltage:  AC100-240V/50-60Hz
Power:  220W
LEDs:  24pcs 5050 LEDs (3200k+5600k) , 3200k single LED 10W, 5600k single LED 10W .
LEDs power:  3200k/200W, 5600k/200W
LEDs life:  50000-100000 hours
Color Temp:  3200-5600K tunable
CRI:  ≥93,TLCI≥91
Luminous flux:  3200K/4050 lm、5600K/4260 lm

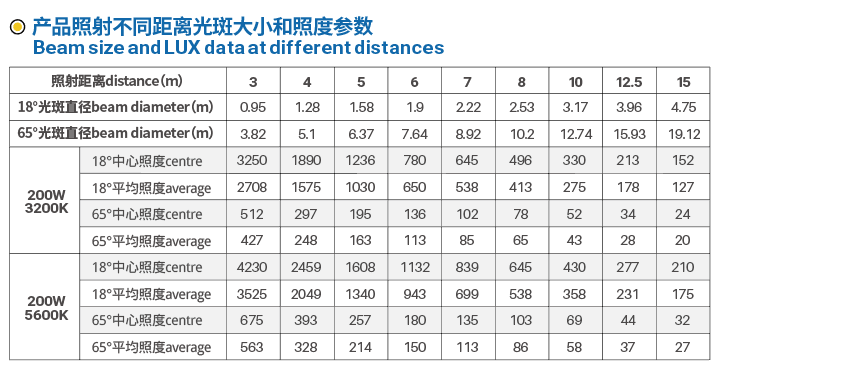

Beam angle:  18-65°adjustable
Control signal:  DMX
DMX channel:  4 channels
Control model:  DMX or manual button
Dimming:  16BIT above smooth flicker-free dimming, dimming not delay, frequency 20k above.
Zooming:  electronical zooming
Radiation fan:  custom made fan, its speed and noisy changeable intelligently
Ambient temperature:  -25℃-40℃
IP rating:  IP20

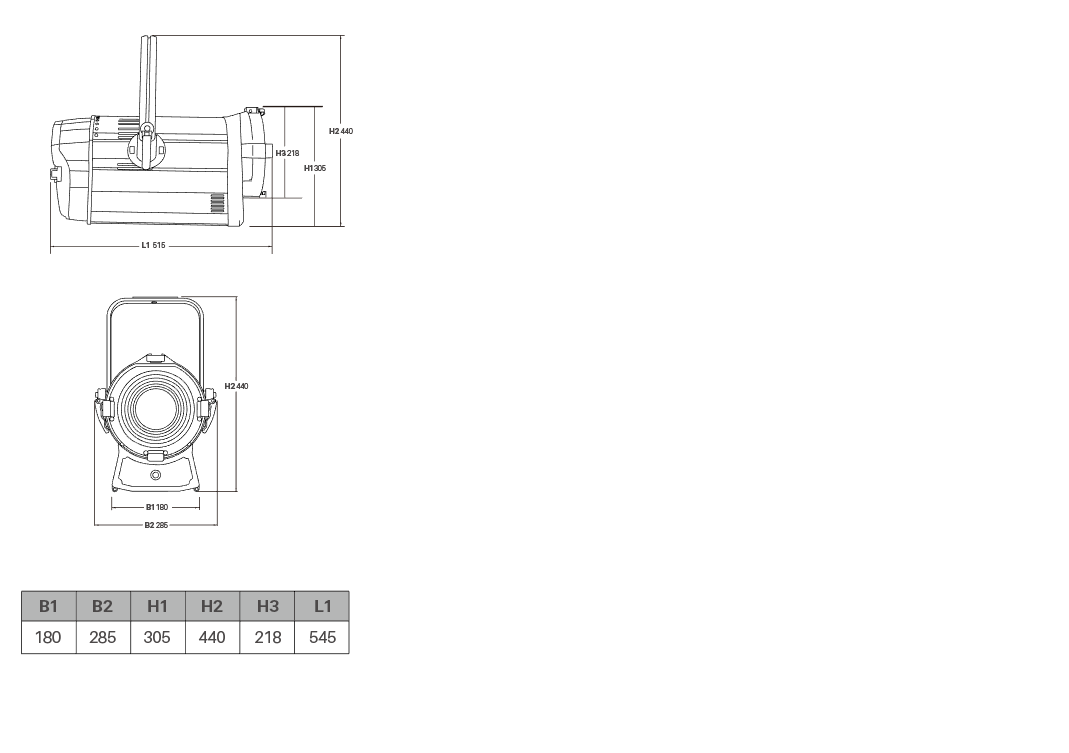

Inner size:  56X28.5X28.5cm
Packing size:  67X34.5X33.5cm
Net weight:  10.2kg (light 9.4kg  barndoor 0.8kg)
Gross weight:  12. 5kg
