DD-SB4B
LED stage blinder 4-B
Voltage:AC100-240V/50-60Hz
Light source:4 modules LED light source, each module using 18 pcs LEDs 3030 or 3535, single power 5W .<
Lamp power:320W
CCT:normally 3200k or custom made for customers.

LED stage blinder 4-B product description:

1. The light source adopts four module LED light sources consisting of 18 3030 LED light sources or 3535 LED light sources (single light source power 5W), which has high light extraction efficiency and good heat dissipation.
2. The optical system is a combined aspherical light path designed according to the characteristics of the lamp. The light extraction efficiency is high, the spot is uniform, and there is no yellow edge blue edge phenomenon.
3. The lamp cooling system is designed to be customized according to the structural characteristics of the lamp and the heating characteristics of the light source. The product is excellent in heat dissipation and low in noise.
4. The software is designed by top international engineers in the industry, using the most advanced CPU, 16-bit or more jitter-free smooth linear dimming. The dimming frequency is above 20K. The control channel can be selected in both 1-channel and 9-channel modes depending on the field usage.
5. The color temperature can be selected from 2700K to 6500K according to customer requirements. The color rendering index can be selected from the range of 70% to 97%.
6. The product input power can have multiple inputs and outputs. Cross each other.
7. The LED four-eye audience light is higher than the traditional four-eye audience light (2600W), and the spot is even. It is a very valuable product with low energy consumption, high efficiency and high cost performance.


Product name:LED stage blinder 4-B
Item:DD-SB4B
Voltage:  AC100-240V/50-60Hz
Power:  320W
LEDs:  4 modules LED light source, each module using 18 pcs LEDs 3030 or 3535, single power  5W .
LEDs power:  320W
LEDs life:  50000-100000 hours

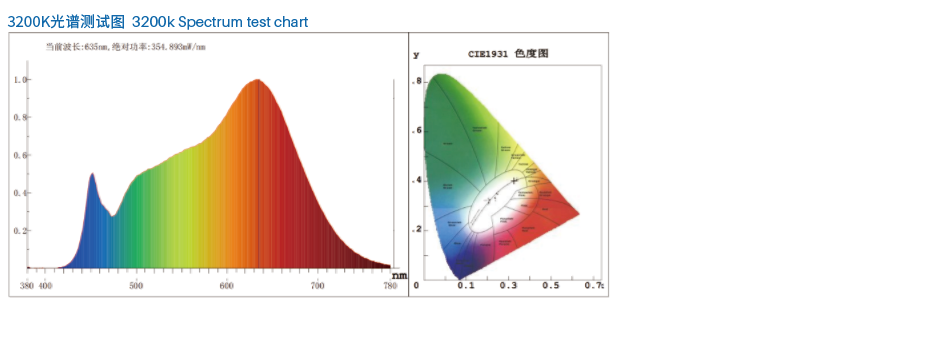

Color Temp:  normally 3200k or custom made for customers.
CRI:  normally 85%, or custom made for customer.
Luminous flux:  17290 Im
Beam angle:  move the light head panel angle can be changed.
Control signal:  DMX
DMX channel:  1 channel or 9 channels optional .
Control model:  DMX or manual button
Dimming:  16BIT above smooth flicker-free dimming, dimming not delay,  frequency 20k above.
Ambient temperature:  -25℃-40℃
IP rating:  IP20

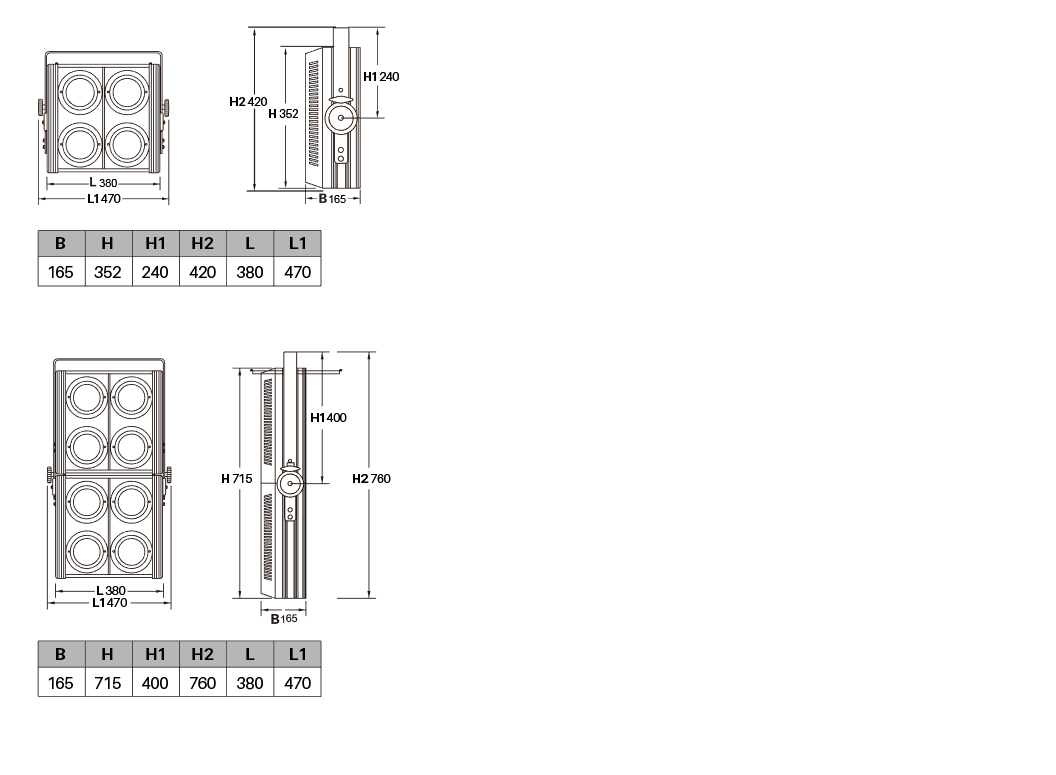

Inner size:  47X16.5X42cm
Packing size:  53X47X23cm
Net weight:  9.4kg
Gross weight:  11kg
